BS EN 1957 Furniture Testing Machine , 20cpm Mattress Testing Machine

Brand Name : GESTER

Model Number : GT-LA02

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30days

Packaging Details : wooden packaging

Usage : testing the bearing capacity and durability of mattresses

Warranty : 12 Months

Product name : Mattress Roller Durability Testing Equipment

Application : Furniture Testing Equipment

Quality : High,good

Advantage : factory direct sale, fast delivery

Contact Now

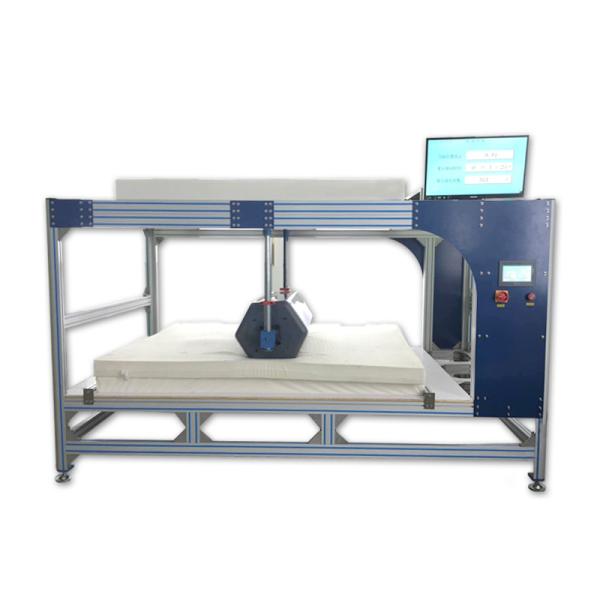

Mattress Roller Tester GT-LA02

Product Introduction

Application:

The Mattress Roller Tester is an instrument for testing the bearing capacity and durability of various types of mattresses for long-term repetitive loads.

Principle:

It is designed by imitating people continual roll over on the mattress (positive pressure, lateral pressure, and overturn, etc.).Use cylinder or hexagon to load the testing part of mattress which is horizontally placed for repeated loading, to determine the mattress endurance for long-term repetitive loading.

Standards:

ASTM F1566

BS EN 1957

QB/T 1952.2

Safety Instructions

Avoid using it in the following situation:

1.It is not allow shaking and swaying.

2.Place of direct sunlight.

3.It is not allow high temperature, dusty, wet places.

4.The earth connection of alternating current which supply to the equipment (ac) should be good, it must be safe.

5.Please do not use strong solvents to clean machine gear. Such as benzene, nitro class oil)

6.Water and sundry does not put into machine, in order to protect electrical components and preventing electric shock.

7.Instrument monitor interior of disassembling and debugging only can be supervised by the ministry of national metrology units and company, and it should not be repaired by others.

Key Specifications

Model GT-LA02A GT-LA02B
Cylinder Shape Hexagon Round
Cylinder Length 36±3in(915±75mm) 1000mm
Cylinder Weight 240±10Lb(109±4.5kg) 1400N
Drum diameter (face to face) 17±1in(430±25mm) 300mm
Controller PLC programmable control
Motor Taiwan Delta
Test speed 0-20cpm (adjustable)
Stroke 0--1900mm 0--1000mm
Power supply 1∮, AC 220V 50Hz
Dimension (W×D×H) 380 x 250 x 180 cm 280 x 250 x 180 cm
Weight ≈1200kg ≈900Kg
Standards ASTM F1566 BS EN 1957, QB/T 1952.2
Standard accessories ASTM Hexagon Roller EN Round Roller
Optional accessories EN Round Roller /
