SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine

Name: SATRA TM93 Brass 45mm ID Shoelace Against Eyelets Abrasion Testing Machine
Brand: GESTER
Price: 1 USD

Quality SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine wholesale

Brand Name : GESTER

Model Number : GT-KC03

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Product name : Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine

Warranty : 1 Year

Price : Factory Price

Weight(approx.) : 60 kg(excluding weight)

Control method : Touch-screen control, 0~999,999

Power supply : 1∮AC 220V 50/60HZ

Contact Now

Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine

Application
This tester is used for shoelace against standard eyelet abrasion testing, or eyelet against standard shoelace abrasion testing. This tester is suitable for all kinds of shoelace and eyelet.

Principle
Let shoelace cross the eyelet clamped on the fiber board, make the shoelace and eyelet form into 90 degree, make the fiber board and shoelace form into 45 degree. Then straining reciprocated the shoelace under the standard tension by eyelet. While the shoelace is damaged, stop the testing.

Key Specification

Model	GT-KC03
Position	6 positions
Weights	455g ± 5g , 6pcs
Control method	Touch-screen control, 0~999,999
Standard eyelet	Brass, Inner diameter: 4.5mm
Fiberboard	25×25mm, Inner diameter 5.0 ± 0.2mm
Movable stroke	76 ±2 mm
Test speed	100±5cpm
Power supply	1∮AC 220V 50/60HZ
Dimensions(W×D×H)	57x58x41cm
Weight(approx.)	60 kg(excluding weight)
Standards	SATRA TM93

Standard accessories

Power line	1pc
Standard eyelet	6pcs
455g Weights	6pcs

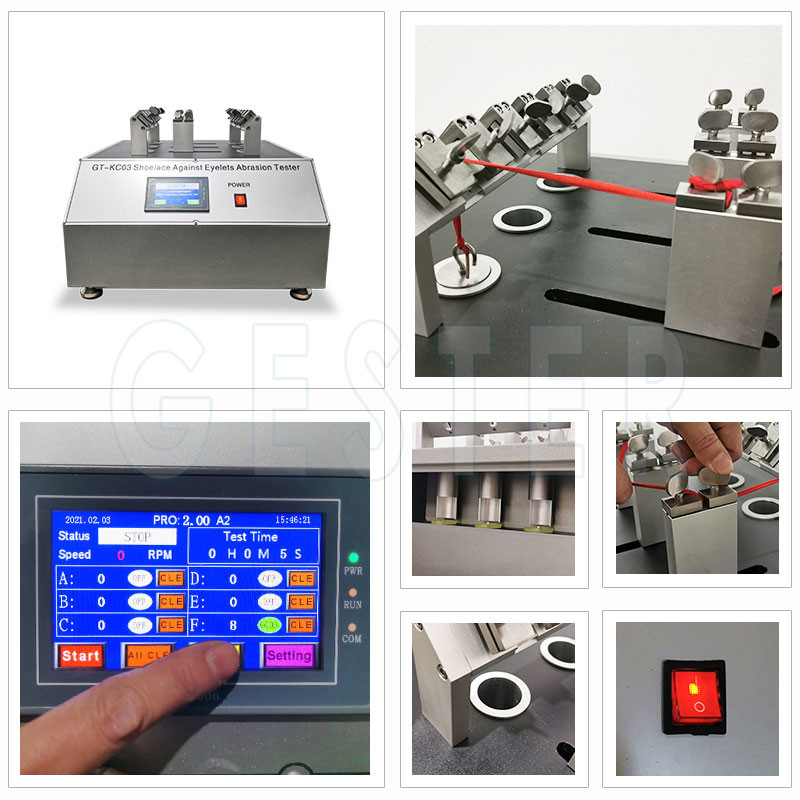

Product Picture

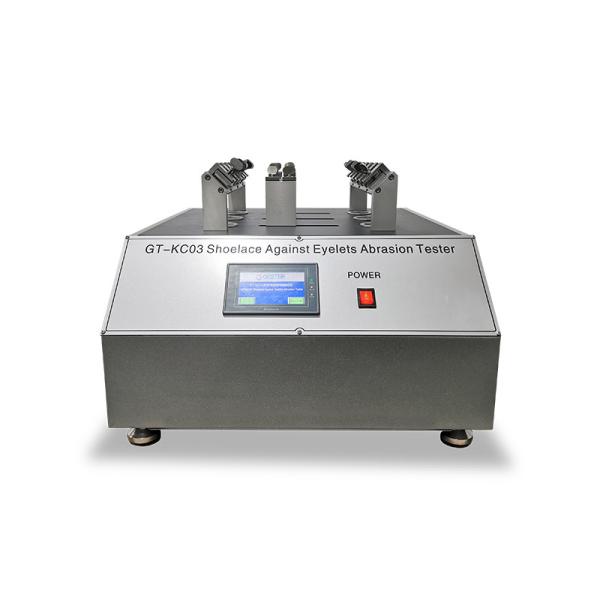

SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
